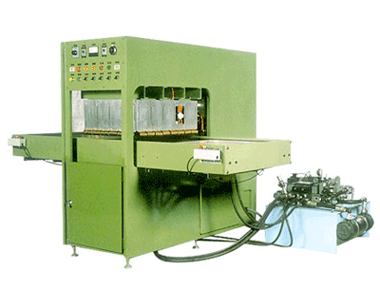

Shuttle Table Plastic Welding and Cutting Machine


This shuttle table machine is designed for welding and cutting molds, suitable for edge trimming of PET-G blister package and non-woven and TPU welding and cutting. New oscillation case design; strong, durable and reliable machine. The shuttle table is easy to operate, and can slide in and out, rotate and position accurately. Pressure of the hydraulic press may be adjusted with the molds, and ensure longer life of the molds. Electrical pre-heat flat mold base loads/unloads molds promptly and supports easy horizontal adjustment. High-sensitivity ARC suppressor features quick response and high stability.

Product No¡G

HW-804S-20T¡BHW-1004S-20T¡BHW1504S-25T¡BHW2504S-30T



Product Info¡G
May weld and cut TPU tape or PET-G.
> Blister welding, edge banding and packaging
> Welding of medical equipment

Model
HW-804S-20T
HW-1004S-20T
HW-1504S-25T
HW-2504S-30T
Max. HF output power
8 KW
10 KW
15 KW
25 KW
Oscillation frequency
27.12 MHz
27.12 MHz
27.12 MHz
27.12 MHz
Power source
3P AC 220/380/415/440V, 50/60Hz
3P AC 220/380/415/440V, 50/60Hz
3P AC 220/380/415/440V, 50/60Hz
3P AC 220/380/415/440V, 50/60Hz
Input power
16 KVA
20 KVA
30 KVA
55 KVA
ARC suppressor
NL-5557
NL-5557
NL-5557
NL-5557
Rectifier
Silicon Rectifier
Silicon Rectifier
Silicon Rectifier
Silicon Rectifier
Distance between upper & lower electrodes
150 mm
150 mm
150 mm
150 mm
Press stroke (adjustable)
20 ~ 125 mm
20 ~ 125 mm
20 ~ 125 mm
20 ~ 125 mm
Dimension of top platen
450 x 600mm
500 x 600mm
500 x 700mm
600 x 900mm
Max. pressure
2000 kgs/cm 2
2000 kgs/cm 2
2500 kgs/cm 2
3000 kgs/cm 2
Press operation
Hydraulic type
Hydraulic type
Hydraulic type
Hydraulic type
Packing dimension
/ weight
159 x 292 x 190 cm / 3500 kgs
159 x 292 x 190 cm / 3500 kgs
169 x 322 x 198 cm / 4800 kgs
209 x 420 x 198 cm / 6500 kgs
